Big Power CNC Fiber Laser Cutting Machine For Stainless Steel Metal Plate

Wuxi Smart CNC Equipment Group Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

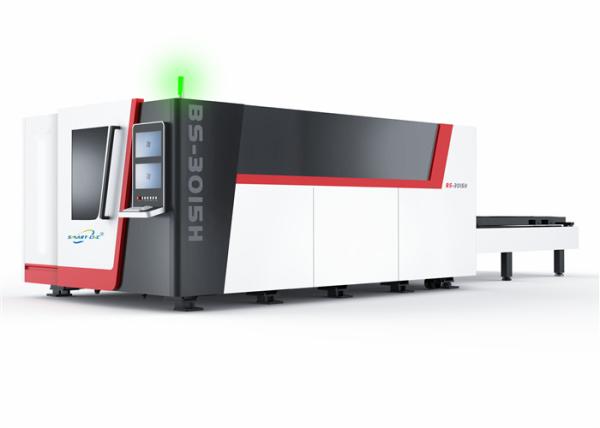

Big Power CNC Fiber Laser Cutting Machine For Stainless Steel Metal Plate

Brand Name : SMART CNC

Model Number : 6000W

Certification : CE ISO TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Supply Ability : 50 sets/month

Delivery Time : 45days

Packaging Details : Nude

Cutting Area : 2000*6000mm

Cooling Mode : Water Cooling

Laser power : 6000W

Control system : Germany

Cutting Speed : 0-40000mm/min

Warranty time : 3 years

Brand : IPG

thickness : 0-30mm

Contact Now

6M*2M Big Working Table 1 KW 1.5KW 4KW 6KW Big Power CNC Fiber Laser Cutting Machine 6040 For Stainless Steel Metal Plate
Product Description

Robus-FL6000-3015 6kw laser cutting machine has high quality beam, high reliability, good optical mode, high top power, smooth incision, good perpendicularity.

4KW fiber laser cutting machine is a special cutting machine, which is suitable for stainless steel, carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CYPCUT program can process any graphics and text, running stably, good processing quality, high efficiency, good precision, easy operation, convenient maintenance.

Product Features

1. Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3. High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach 100,000 hours.
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment .
5. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
6. Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
7. Easy Operation : Fiber Line transmission, no adjustment of optical path.
8. Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements .

Product Application

Automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo, car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products, subway accessories, decoration, textile machinery, food machinery , Construction machinery, ships, tooling, metallurgical equipment, aviation, aerospace and other manufacturing and processing industries;

Laser Cutting machine is suitable for variety of metal plates, pipes ( with special device ), stainless steel, carbon steel, galvanized sheet, pickling board, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.

SML Series CNC Fiber Laser Cutting Machine

1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.

2. High-performance laser source and stable operating system which make the best cutting effect.

3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.

4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.

6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.

7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.

Specification for CNC Fiber Laser Cutting Machine

Description Unit SML 3015 SML 4015 SML 4020 SML 6020 SML 6025
Max.sheet size mm 3000x1500 4000x1500 4000x2000 6000x2000 6000x2500
X-axis stroke mm 3050 4050 4050 6050 6050
Y-axis stroke mm 1525 1525 2025 2025 2525
Z-axis stroke mm 200 200 200 200 200
X, Y axes positioning accuracy mm/m 0.02 0.02 0.02 0.02 0.02
X, Y axes repetition accuracy mm ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
X, Y axes max.speed m/min 120 120 120 120 120
Laser power W 500/700/1000/2000/3000/4000/6000
Machine dimension m 8.8x3.9x2.0 11x4.5x2 11x5x2 15x5.8x2 5x6.2x2

Fiber Laser Cutting Machine Technical Parameters
Laser Type Fiber laser
Laser Brand IPG / Raycus
Laser Power 500W (750W / 1000W /2000W/3000W/4000W optional)
Working area 1500mmX3000mm 1300x2500mm 2000*4000mm Optional

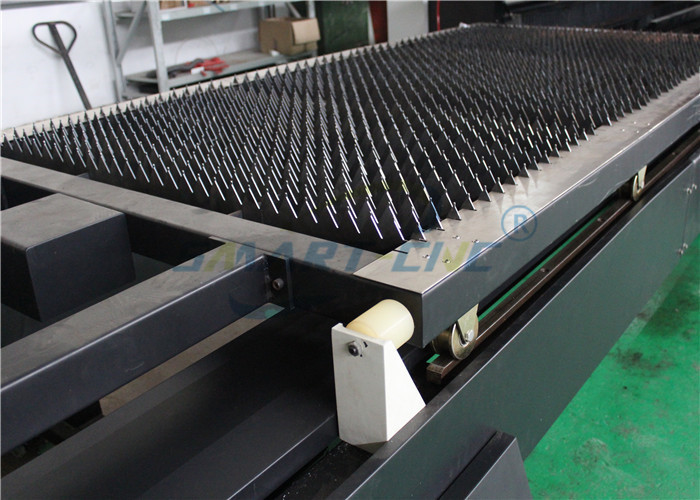

Working Table Fixed Working Table
Control System PMAC full-closed loop servo control
Driving Mode Double gear rack driving
Positioning Accuracy 0.05mm
Protection System Enclosure protection
Cutting Head Precitec / Laser Mech /
Power Supply AC380V ± 5% 50 / 60Hz
Total Power 7KW~11KW
Standard Collocation

Metal nesting software, dual-pressure

gas route of 3 kind gas sources, dynamic focus, remote controller, etc.

Software CutMax Laser Cutting Software or PA8000 software, Metal Nesting Software
Supported Format

PLT, DXF, BMP, AI, DST, DWG, etc.


Big Power CNC Fiber Laser Cutting Machine For Stainless Steel Metal PlateBig Power CNC Fiber Laser Cutting Machine For Stainless Steel Metal PlateBig Power CNC Fiber Laser Cutting Machine For Stainless Steel Metal Plate
