Hydraulic Stainless Steel Rolling Machine Low Energy Consumption Long Life

Brand Name : SMART CNC

Model Number : W12-12×2000

Certification : CE ISO TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Supply Ability : 50 SETS/Months

Delivery Time : 45days

Packaging Details : Nude

Max thickness : 12mm

Width : 2000mm

Types : CNC

Motor : Siemens

Delivery time : 45 days

Electrical : Taiwan

Hydraulic : Rexroth

Contact Now

W12 Stainless Steel Pipe Rollers, 4 Roll Plate Bending Machine, Hydraulic Plate Rolling Machine

1. The Feature of Hydraulic Plate Rolling machine

1. The machine widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy, power transmission towers and other machinery and equipment. Its working principle is rotating bending deformation. For the upper roller can be moved no matter up and down, but also horizontally, so no need additional press or equipment, can realize pre-bending, bending, as well as correction of the workpiece.

2. The whole structure of Hydraulic Plate rolling machine :

1. Totally European design,streamlined looking,frames of our machines are fabricated, welded steel (ST-52). Roll shafts, materials and bearings used in production are European quality. Also the torque limit of the machines is very high. NC playback and NC graphic control systems are available as optional accessory.

2. T he main structure of the equipment includes upper roller, lower roller and horizontal movement mechanism, supporting mechanism,main drive mechanism,downturn system, left and right machine frame, chassis and balance mechanism, hydraulic and electrical control systems.

3.The model MH has both the upper and the lower roll powered with hydraulic motor and planetary gear box.

3. The Feature of Hydraulic Plate Rolling machine :

1. High precision pre-bending, freely setup the width of plate. Upper roller presses the plate end for pre-bending.

2. Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate.

3. Safe work, fixed two down roller, upper roller does horizontal and vertical movement, and the plate don’t move during upper roller moving.

4. Unitary structure, convenient to move the whole machine as machine has a hardy under pan. No need to anchor bolt.

5. Different use has different control way, like top numerical control and below numerical control.

6. Through exclusive technology, Krrass can develop cones as easily as competitive machines can develop cylinders. And it eliminates scarring on the surface of shell or roll and also eliminates, in most cases, the need for grinding the lamination (bullnosing) on the minor diameter edge.

4. PLC Touch display NC control system:

1. Special bending aircraft, numerical control.

2. HMI (human machine interface), intelligent operation.

3. Self-compensating, single operate, high efficiency, safe and convenient.

4. Many models for choice, economic numerical control model, TC computerized numerical control.

TECHNICAL PARAMETERS

Model

Max.bending thickness

(mm)

Pre-bending thickness

(mm)

Max.working length of rolls

(mm)

Yield limit

(Mpa)

Top roller diameter

(mm)

Bottom roller diameter

(mm)

Side roller diameter

(mm)

Main power

(KW)

W12-4X2000 4 3.5 2050 245 160 140 120 3
W12-6X2000 6 5 2050 245 190 170 150 4
W12-8X2000 8 6.5 2050 245 210 190 170 5.5
W12-10X2000 10 8 2050 245 230 210 190 7.5
W12-12X2000 12 10 2050 245 270 250 210 11
W12-16X2000 16 13 2050 245 300 270 220 11
W12-20X2000 20 16 2050 245 330 300 240 11
W12-25X2000 25 20 2050 245 360 330 250 15
W12-30X2000 30 25 2050 245 390 360 300 18.5
W12-35X2000 35 28 2050 245 430 390 330 22
W12-40X2000 40 32 2050 245 460 420 360 30
W12-45X2000 45 36 2050 245 510 460 390 37
W12-50X2000 50 40 2050 245 550 510 420 45
W12-4X2500 4 3.5 2550 245 190 170 150 4
W12-6X2500 6 5 2550 245 210 190 170 5.5
W12-8X2500 8 6.5 2550 245 230 210 190 7.5
W12-10X2500 10 8 2550 245 270 250 210 11
W12-12X2500 12 10 2550 245 300 270 220 11
W12-16X2500 16 13 2550 245 330 300 240 11
W12-20X2500 20 16 2550 245 360 330 250 15
W12-25X2500 25 20 2550 245 390 360 300 18.5
W12-30X2500 30 25 2550 245 430 390 330 22
W12-35X2500 35 28 2550 245 460 420 360 30
W12-40X2500 40 32 2550 245 510 460 390 37
W12-45X2500 45 36 2550 245 550 510 420 45
W12-4X3000 4 3.5 3100 245 210 190 170 5.5
W12-6X3000 6 5 3100 245 230 210 190 7.5
W12-8X3000 8 6.5 3100 245 270 250 210 11
W12-10X3000 10 8 3100 245 300 270 220 11
W12-12X3000 12 10 3100 245 330 300 240 11
W12-16X3000 16 13 3100 245 360 330 250 15
W12-20X3000 20 16 3100 245 390 360 300 18.5
W12-25X3000 25 20 3100 245 430 390 330 22
W12-30X3000 30 25 3100 245 460 420 360 30
W12-35X3000 35 28 3100 245 510 460 390 37
W12-40X3000 40 32 3100 245 550 510 420 45
W12-50X3000 50 40 3100 245 610 560 480 55
W12-60X3000 60 48 3100 245 670 620 520 75

Description and specification given in this catalogue are subject to modification without notice.

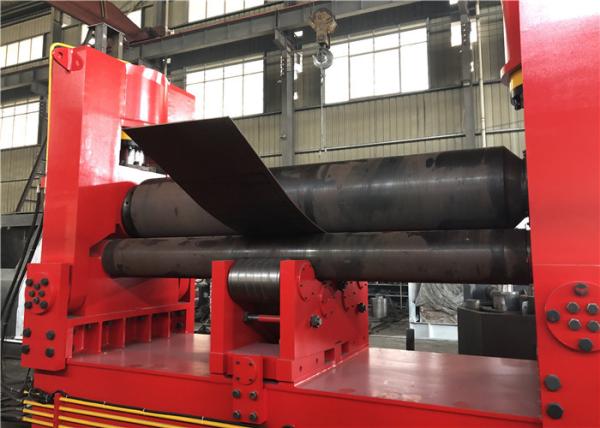

Hydraulic Stainless Steel Rolling Machine Low Energy Consumption Long Life
